Professional semi-rotary die-cutters with lamination, flexible steel die-cutting, waste removal, slitting and rewinding. Up to 30 m/min.

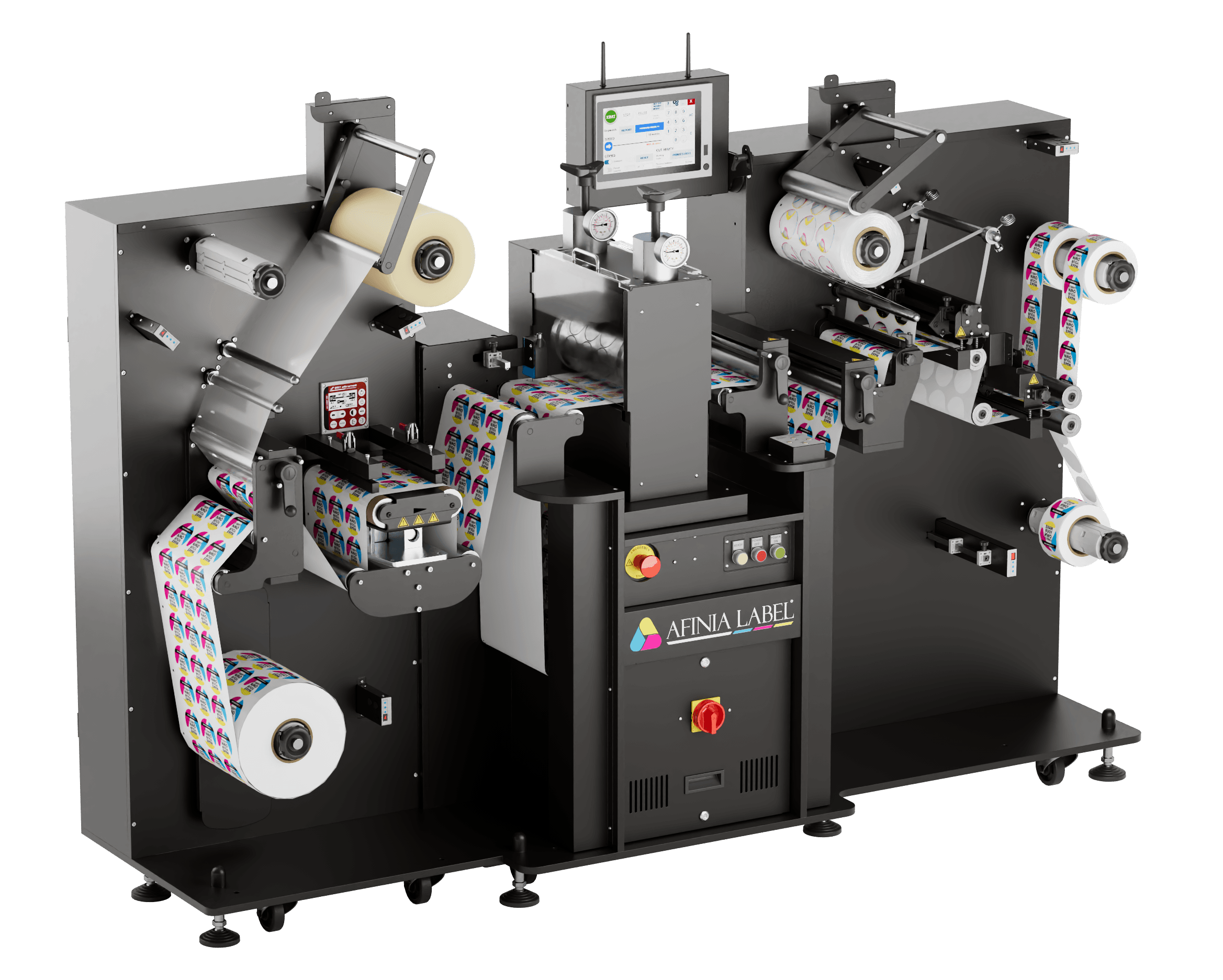

The Afinia DC250 and DC350 are semi-rotary die-cutters designed for professional label finishing. They integrate lamination, flexible steel die-cutting, automatic waste removal, slitting and rewinding in a single compact system. Speeds up to 30 m/min.
The magnetic cylinder enables ultra-fast job changeovers with economical flexible dies. The DC250 handles webs up to 250 mm, the DC350 up to 350 mm wide, adapting to any production requirement.
Ideal as a complement to the Afinia L901 and X350 printers, the DC250/DC350 complete the workflow from printing to finished labels ready for application.
Video
Protects labels from wear, scratches and environmental conditions. Supports self-wound and liner laminates for a premium, long-lasting finish.
Magnetic cylinders with flexible steel dies: economical, quick to produce and replace. Ultra-fast job changeover for maximum productivity.
The integrated system automatically removes excess material after die-cutting, leaving perfectly shaped labels.
Converts wide rolls into narrower rolls ready for application. Up to 15 slitting blades to create multiple formats from a single run.
High-speed production for handling medium-to-large runs efficiently. Ideal for label converters requiring consistent volumes and fast turnaround.
Minimal setup between jobs thanks to interchangeable magnetic cylinders. Reduce downtime and maximize daily productivity.
Comparison
| Specification | DC250 | DC350 |
|---|---|---|
| Semi-rotary speed | Up to 30 m/min | Up to 30 m/min |
| Max web width | 250 mm (9.84") | 350 mm (13.78") |
| Min web width | 100 mm | 100 mm |
| Max die-cut width | 230 mm | 330 mm |
| Max die-cut length | 360 mm | 360 mm |
| Input roll diameter | 500 mm | 500 mm |
| Roll holder | Mechanical (3") | Pneumatic (3") |
| Lamination | Yes — self-wound and with liner | Yes — self-wound and with liner |
| Max laminate diameter | 250 mm | 250 mm |
| UV varnish module | Yes | Yes |
| Dies | Flexible steel, 130×360 mm | Flexible steel, 130×360 mm |
| Magnetic cylinder | 18" - 2144 mod. 1/8 | 18" - 2144 mod. 1/8 |
| Registration sensor | Laser, 4×4 mm | Laser, 4×4 mm |
| Label rewind | Max 400 mm | Max 400 mm |
| Waste rewind | Max 300 mm | Max 300 mm |
| Slitting blades | Up to 12 | Up to 15 |
| Dimensions | 283 × 72 × 165 cm | 283 × 100 × 165 cm |
| Power supply | 100×240V, ~1kW, 50/60Hz | 100×240V, ~1kW, 50/60Hz |
